Primus Cable 06 Strand Fiber, MM, 50/125 OM3, Corning, Indoor/Outdoor, Distribution, TB, Plenum(OFNP), Black (Sold Per Foot)

SKU: FB15-3781-M6P
Agotado
$1.54 USD

Precios especiales para ISP, WISP y revendedores

Si eres proveedor de internet, integrador o compras con frecuencia, inicia sesión para ver tu precio de distribuidor. ¿Proyecto grande? Escríbenos y te cotizamos el mejor precio.

Iniciar sesión Solicitar cuenta

Primus Cable FB15-3781-M6P

06 Strand Fiber, MM, 50/125 OM3, Corning, Indoor/Outdoor, Distribution, TB, Plenum(OFNP), Black (Sold Per Foot)

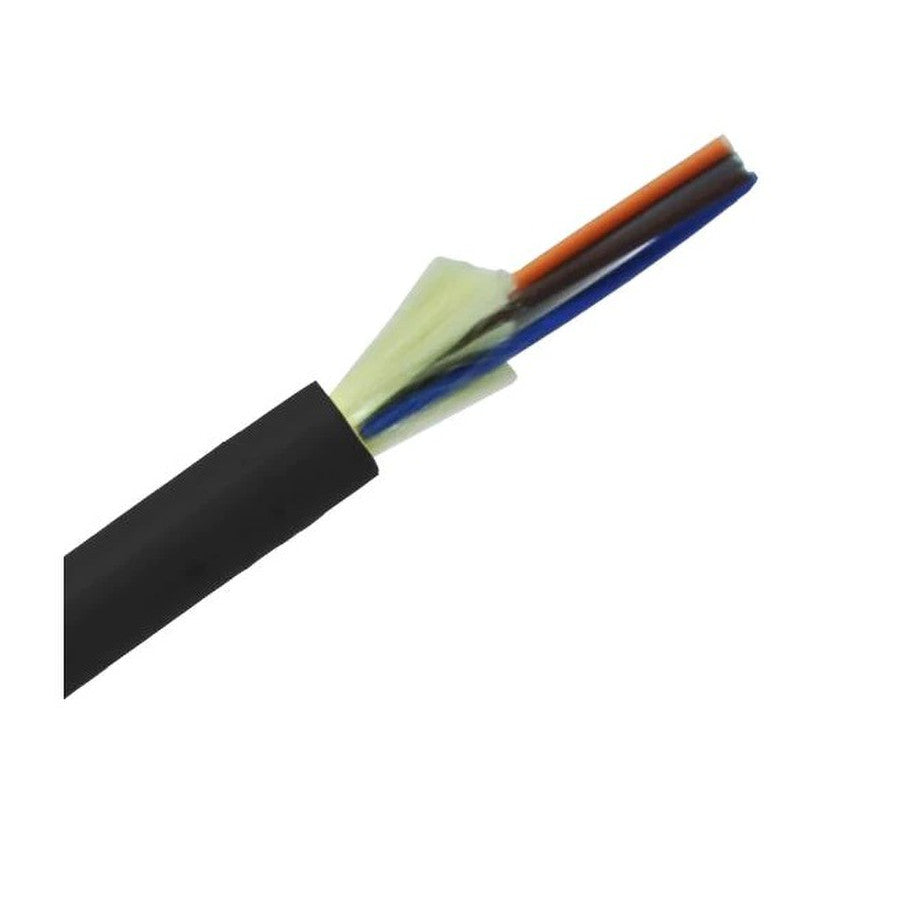

Multimode OM3 Indoor/Outdoor Plenum OFNP Distribution Fiber Optic Cable with Corning Fiber

This plenum distribution fiber cable is composed of 2-24 colored tight buffers, aramid yarn, and a PVC outer jacket. All component materials meet the EU RoHS and REACH Directive standards.

The plenum distribution fiber Cable is available in 12 TIA standard colors or special order colors. Our Fiber is UL Listed with a OFNP fire rating. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers.



Features

  • 900um Tight Buffers
  • Water blocking aramid yarn strength members
  • UV resistant jacket, OFNP Plenum rated construction
  • Exclusive use of Corning™ optical fibers
  • Jacket print ensures product identification and fiber compatibility
  • Buffers strip consistently between 3.5- 5 lbs-f, helpful for onsite termination
  • Durable jacket offers added protection during installation and in rugged use applications

Applications:

  • Rated for Indoor/Outdoor applications
  • Trunk cable between floors
  • Data centers



Specifications FB15-3781-M6P

Weight .026 lbs
Dimensions (LxWxH) 16 x 16 x 8 inches
Temperature Range
Storage Temperature -40ºC to +70ºC
Operating Temperature -40ºC to +70ºC
Cable
Fiber Count 2 Fiber Strands
Outer Jacket Material Flame Retardant PVC
Outer Jacket Color Black
Strength Member Aramid Yarn
Tight Buffer Material Flame Retardant PVC
Tight Buffer Color Available in 12 TIA/EIA Color Standards
Mechanical
Nominal Outer Diameter 2 Strand: 4.40mm
Minimum Bend Radius (Installation) 2 Strand:6.60cm
Minimum Bend Radius (Operation) 2 Strand:4.40cm
Optical
Core Size 50um
Wavelength (850/ 1300) nm
Max. Attenuation (3.0/ 1.0) dB/ km
Bandwidth (EMB) (High Performance) 2,000 MHz @850nm
Link Length (10Gb/ s) 300m
